Outdoor Portable Digital Signage with 1800nits Brightness, IP55 Waterproof, and 14 Hours Battery Life in 32/43/55 Inches
Product Details:
| Place of Origin: | china |
| Brand Name: | ctvs |
| Certification: | 3c ce fcc rohs |
| Model Number: | ZS-LA430H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 800USD-1450USD |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8work days |
| Payment Terms: | T/T |
| Supply Ability: | 99999 |
|
Detail Information |
|||
| Highlight: | 1800nits brightness Portable Digital Signage,IP55 waterproof Outdoor Digital Signage,14 hours battery life Portable LED Display |
||
|---|---|---|---|
Product Description

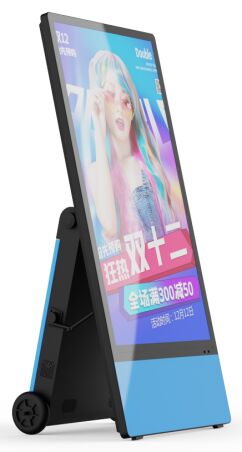

Outdoor Portable Digital Signage

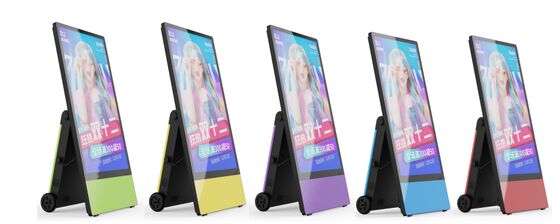

Available in 32", 43", and 55" display sizes for versatile outdoor deployment
Structural Performance
- Fully galvanized steel shell with imported metallic paint finish, offering magnetic and static resistance
- IP55 waterproof rating for all-weather protection against outdoor dust and water
- Comprehensive electrical protection: leakage current, overload, overvoltage, lightning protection, and overtemperature protection
- Dual-channel stereo surround amplifier system with 8Ω output and 2*10W power
- Operating temperature range: -50°C to +110°C with stable air-cooled structure
- Military-grade aluminum heat dissipation substrate for reliable performance
- 6mm AR tempered laminated glass for durability
- Modular design principle for enhanced sustainability and maintainability
- Superior light sensing system with automatic ambient light adjustment and anti-glare technology
Product Superiority
- High-brightness LED backlight LCD screen with 1800nits brightness for sunlight visibility
- Proprietary liquid crystal substrate with wide temperature range (-50°C to 110°C)
- Rapid startup and crisp image display in low-temperature environments
- True-to-life vibrant colors with resolution up to 2160 x 3840
- Outdoor waterproof heat-resistant metal casing designed for harsh storm conditions
- Built-in standalone network playback board
- Optional industrial control computer and interactive multi-touch interface
Technical Specifications
| Display Panel Specifications (43" Model) | ||
|---|---|---|
| Display Size | 943*531mm (W*H) | |
| Display Scale | 16:9 | |
| Backlight Type | Patented LED backlight modular components + constant current source driving components | |
| Resolution | 1080*1920 | |
| Display Color | 16.7M | |
| Luminance | 1800 cd/m² | |
| Contrast Ratio | 3500:1 | |
| Viewing Angle | 178°(H) / 178°(V) | |
| Response Time | 5ms | |
| Color Standard | PAL/NTSC/SECAM | |
| Life Length | 60,000 hours | |
| Host System Specifications | |
|---|---|
| CPU | Cortex-A7 architecture, 1.2 GHz |
| Internal Storage | DDR3 1G |
| Built-in Memory | Supports up to 32GB of TF card expansion |
| Decoding Resolution | Supports up to 1080P |
| Operating System | Android 7.1.1 |
| Network Support | 3G/4G wide area network, Ethernet, WiFi support, wireless peripheral expansion |
| Video Playback | Supports over 30 formats including AVI, RM, RMVB, MKV, WMV, MOV, MP4, and more |
| Picture Format | Supports BMP, JPEG, PNG, and GIF |
| USB 2.0 Port | 2 USB HOST standard ports and 2 USB expansion ports |
| System Upgrade | Supports USB upgrade, SD card upgrade, and remote upgrade |
| Power System | |
|---|---|
| Battery Technology | Blade battery, long service life, stable performance |
| Charging Interval | 7 hours |
| Operating Time | 14 hours |
| Battery Capacity | 50000 mAh |
| Input Voltage | 24V |
| Environmental Specifications | |
|---|---|
| Working Temperature | -50℃ to 110℃ |
| Storage Temperature | -45℃ to 80℃ |
| Working Humidity | 10% to 90% |
| Storage Humidity | 10% to 90% |
| Power Input | AC100V to 240V |
| Power Consumption | ≤100W |
| Standby Power Consumption | ≤3W |
| Physical Specifications | |
|---|---|
| Appearance Color | Silver, Gray, White, Black, Red |
| Shell Material | Galvanized steel plate + outdoor special paint |
| Product Certification | ISO9001, 3C, FCC, UL |
| Net Weight | 48Kg |
| Gross Weight | 56Kg |
| Product Size | 1236mm * 148mm * 588mm |
| Packing Measurement | 1350mm * 300mm * 700mm |
