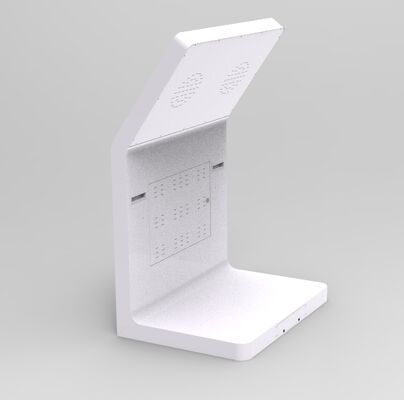

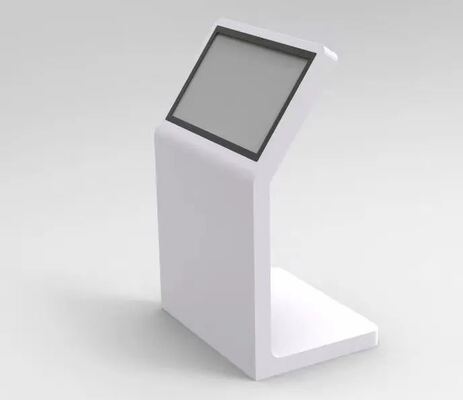

21.5-inch Angled Desktop Self-service Kiosk
Product Details:
| Place of Origin: | ShenZhen |
| Brand Name: | CTVS |
| Certification: | CE 3C |
| Model Number: | ZS-LP215TP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 300-700USD |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5-8Working days |
| Payment Terms: | T/T |
| Supply Ability: | 9999 |
|
Detail Information |
|||
| Productname: | Interactive Self Service Kiosk | Processor: | Intel Core I5 |
|---|---|---|---|
| Securityfeatures: | Password Protection, Encrypted Data Transmission | Display Scale: | 16:9 |
| Optional Color: | White / Black | Weight: | 25 Kg |
| Operatingsystem: | Windows 10 IoT | Dimensions: | 590mm X 420mm X 1000mm |
| Screen Level: | New A + LCD Panel | Screen Brightness: | 250 Cd/m2 (typical Value) |
| Displaytype: | Touchscreen LCD | Screensize: | 21.5 Inches |
| Peripheralsupport: | Printer, Barcode Scanner, Card Reader | Panel Size: | 21.5 Inch(other Size Optional) |
| Touchtechnology: | Capacitive Multi-touch | ||
| Highlight: | 21.5-inch angled desktop kiosk,interactive self-service kiosk,angled desktop self-service terminal |
||
Product Description
### Basic Parameters
1. Screen Size: 21.5 inches (16:9 aspect ratio, standard commercial display size)
2. Screen Type: High-definition (HD) LCD touch screen, 1920×1080 resolution,250 nits brightness, wide viewing angle (178° horizontal/vertical), ensuring clear display and visible content from different angles.
3. Touch Technology: Capacitive multi-touch screen, 10-point touch support, sensitive response (response time ≤5ms), scratch-resistant, fingerprint-proof, and easy to clean, adapting to high-frequency use scenarios.
4. Kiosk Type: Angled desktop design , ergonomic design, comfortable for users to operate without bending down, suitable for long-time self-service operations.
### Body & Material
1. Body Material: Front panel: 3mm tempered glass (high transparency, impact-resistant, wear-resistant); Side & back panel: 1.5mm high-quality cold-rolled sheet metal, surface electrostatic spray treatment, anti-rust, anti-corrosion, and durable.

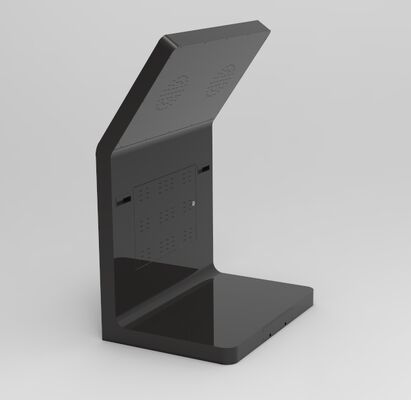

2. Body Color: Standard black (customizable according to customer needs, such as white, gray), matte surface, and easy to maintain.

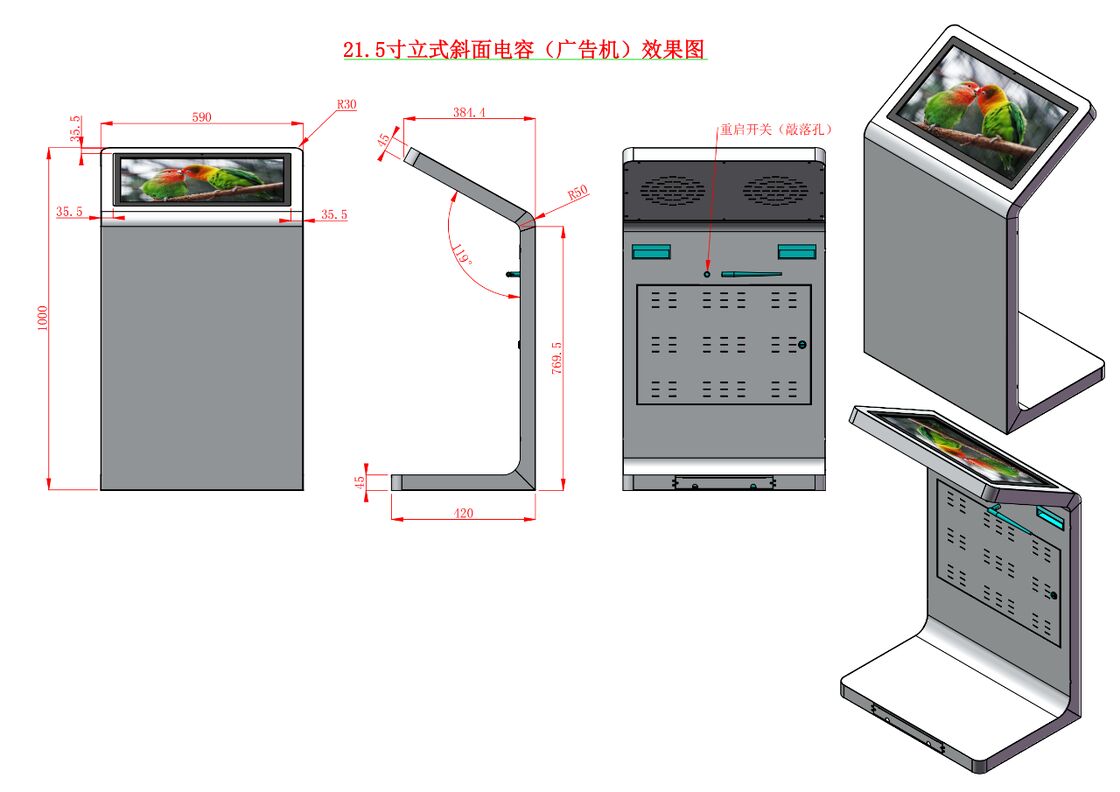

3. Overall Dimensions: 590mm×420mm×1000mm (L×W×H, customizable), compact structure, small space occupation, suitable for indoor placement (restaurants, shopping malls, service halls, etc.).
### Working Environment
1. Working Temperature: 0℃ - 40℃ (suitable for indoor normal temperature environment, not applicable to outdoor or extreme temperature occasions).
2. Relative Humidity: 20% - 80% (non-condensing), moisture-proof, adapting to most indoor humid environments.
3. Working Time: 18 hours continuous operation (optional), stable performance, suitable for long-time commercial operation, meeting working day and peak period use needs.
### Hardware Configuration
1. Processor: Intel Celeron J1900 / Intel Core i3/i5 (optional), stable operation, smooth response to multi-task operations (such as ordering, querying, paying).
2. Memory: 4GB DDR4 (expandable to 8GB), Storage: 128GB SSD (expandable to 512GB/256GB), ensuring fast boot and smooth operation of the system and software.
3. Interface: 2×USB 2.0, 2×USB 3.0, 1×HDMI, 1×RJ45 (Ethernet), 1×Audio interface, supporting connection of printers, scanners, card readers and other peripheral devices.
4. Power Supply: AC 100V-240V, 50/60Hz, low power consumption, energy-saving and environmentally friendly, with over-voltage, over-current and short-circuit protection.
### Software & Function
1. Operating System: Windows 10 Professional / Android 11 (optional), stable, secure, and easy to upgrade and maintain.
2. Core Functions: Support self-service ordering, information query, online payment (WeChat Pay, Alipay, UnionPay, etc.), order printing, data statistics, remote management (optional), and customizable according to business needs.
3. Software Compatibility: Compatible with various self-service software, supporting interface customization, logo customization, and menu/update synchronization.
