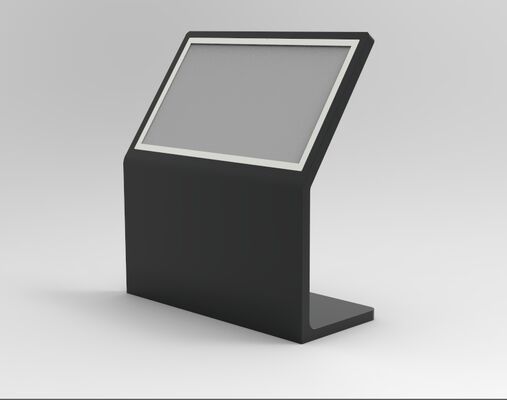

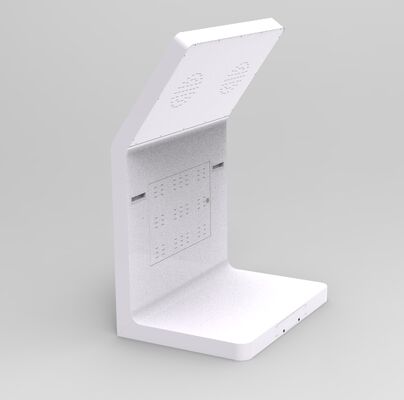

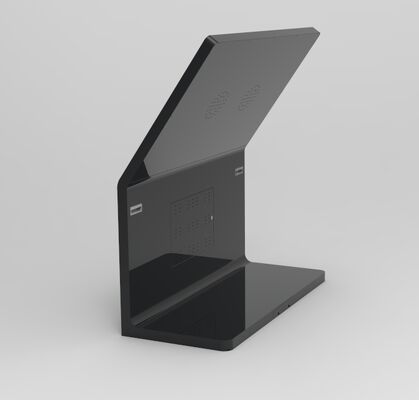

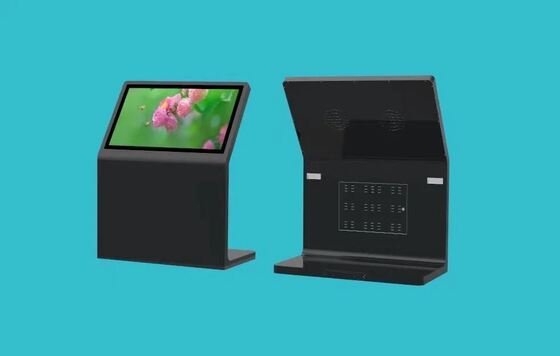

49 Inch IPS HD LCD Panel Interactive Self Service Kiosk with Android/Windows OS for Multimedia Display
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | CTVS |
| Certification: | ISO9001/ISO14001/CE/FCC/ROHS/CCC |
| Model Number: | ZS-ZA490 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $190-$215/PCS |
| Packaging Details: | Packed in cartons and wooden boxes |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 3000PCS/the moon |
|
Detail Information |
|||
| Panel Size: | 49 Inch(other Size Optional) | Screen Level: | New A + LCD Panel |
|---|---|---|---|
| Resolution: | 1920*1080 | Display Scale: | 16:9 |
| Screen Brightness: | 350 Cd/m2 (typical Value) | Optional Color: | Silver / Black |
| Way To Install: | Wall Hanging / Embedded / Hoisting / Bracket | ||
| Highlight: | Windows self service kiosk,Android self service kiosk,55in self service checkout machine |
||
Product Description
Horizontal Multimedia Display Self Service Kiosk
Available in 21.5", 32", 43", and 55" display sizes
Product Overview
Industrial-grade self-service kiosk featuring an integrated frame design with slim profile, easy installation, and maintenance-friendly construction. Advanced thermal management supports 24/7 continuous operation.
High Definition: IPS LCD panel with vibrant colors and high brightness, supporting 1080P video decoding and high-quality image outputIntelligent Operation: Android operating system with pre-installed information display software and third-party app compatibilityVersatile Applications: Supports horizontal and vertical installation for government, education, finance, transportation, hospitality, retail, healthcare, and corporate environmentsPremium Features: Combines aesthetics, high-definition display, security, ease of use, and commercial-grade reliability
System Configuration
| Operating System | Android |
| System Version | 7.1/9.0/11 (Selectable) |
| RAM | DDR3 1GB/2GB (Selectable) |
| Storage | EMMC FLASH 8GB/16GB (Selectable) |
| Interfaces | USB 2.0*2, HDMI-OUT*1, TF Card slot*1, RJ45 Network port*1 |
| Audio Interface | 3.5mm Headphone Jack*1 |
| Network Support | WiFi + Ethernet |
| 3G/4G | Optional installation |
| Pre-installed Software | Information release software |
Customization Note: Configuration specifications can be tailored to your requirements. Windows systems with i3/i5/i7 processors are also available. As a manufacturing enterprise, we support various customization options.
System Functions
| Decoding Capability | 1080P video and image decoding playback |
| Software Applications | Third-party software installation support |
| Memory Expansion | Up to 32GB TF card expansion |
| Language Support | Chinese, Traditional Chinese, English and multiple languages |
| Boot Animation | Customizable startup animation |
| Remote Control | Infrared remote control operation |
| Audio Function | Built-in 8Ω 5W dual-circuit audio amplifier |
| Startup & Shutdown | Remote control, timed, network wake-up, power-on start |
| Root Privileges | Open root permission for software development |
| Input Devices | Wired/wireless mouse and keyboard support |
Media Format Support
Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP
Images: JPG, BMP, PNG
Video: AVI, RM, RMVB, MKV, WMV, MOV, MP4
Input Method: Standard Android keyboard with third-party input method support
Software Features
| Backend Support | Web page / Mobile Phone (LAN/WAN) |
| Playback Modes | Networked mode / Standalone mode |
| Content Support | Video, images, subtitles, PPT, web pages, weather, clock mixed playback |
| Smart Split Screen | Customizable play module division area display |
| Scheduling Function | Custom programs for specified time periods |
| Terminal Management | Hierarchical role creation with editable permissions |
Physical Specifications
| Color Options | Silver / Black |
| Bezel Material | Aluminum profile (oxidized brushed) |
| Body Material | Cold-rolled steel plate (metal spraying) |
| Surface Material | 3mm tempered glass (physically tempered) |
| Body Dimensions | 739.6*433.8*63.8mm (including mount thickness) |
| Package Dimensions | 800*500*130mm |
| Packaging Material | Reinforced neutral carton |
| Net/Gross Weight | 10KG / 12KG |
Electrical Performance
| Application Environment | Indoor |
| Rated Voltage | AC 110-220V |
| Standby Power | ≤1W |
| Rated Power | ≤45W |
| Operating Environment | Temperature: 0℃~55℃ / Humidity: 10%RH~90%RH |
| Storage Environment | Temperature: -5℃~60℃ / Humidity: 10%RH~90%RH |
